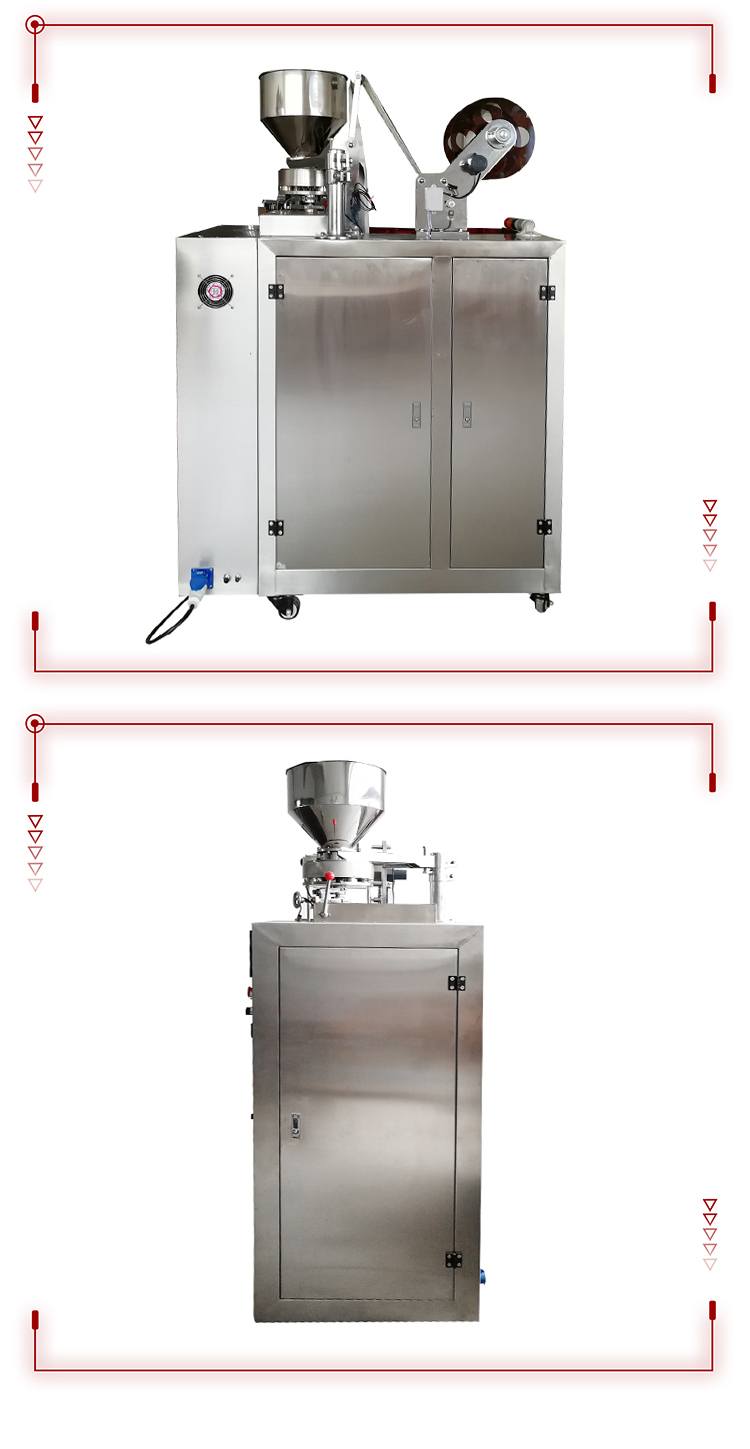

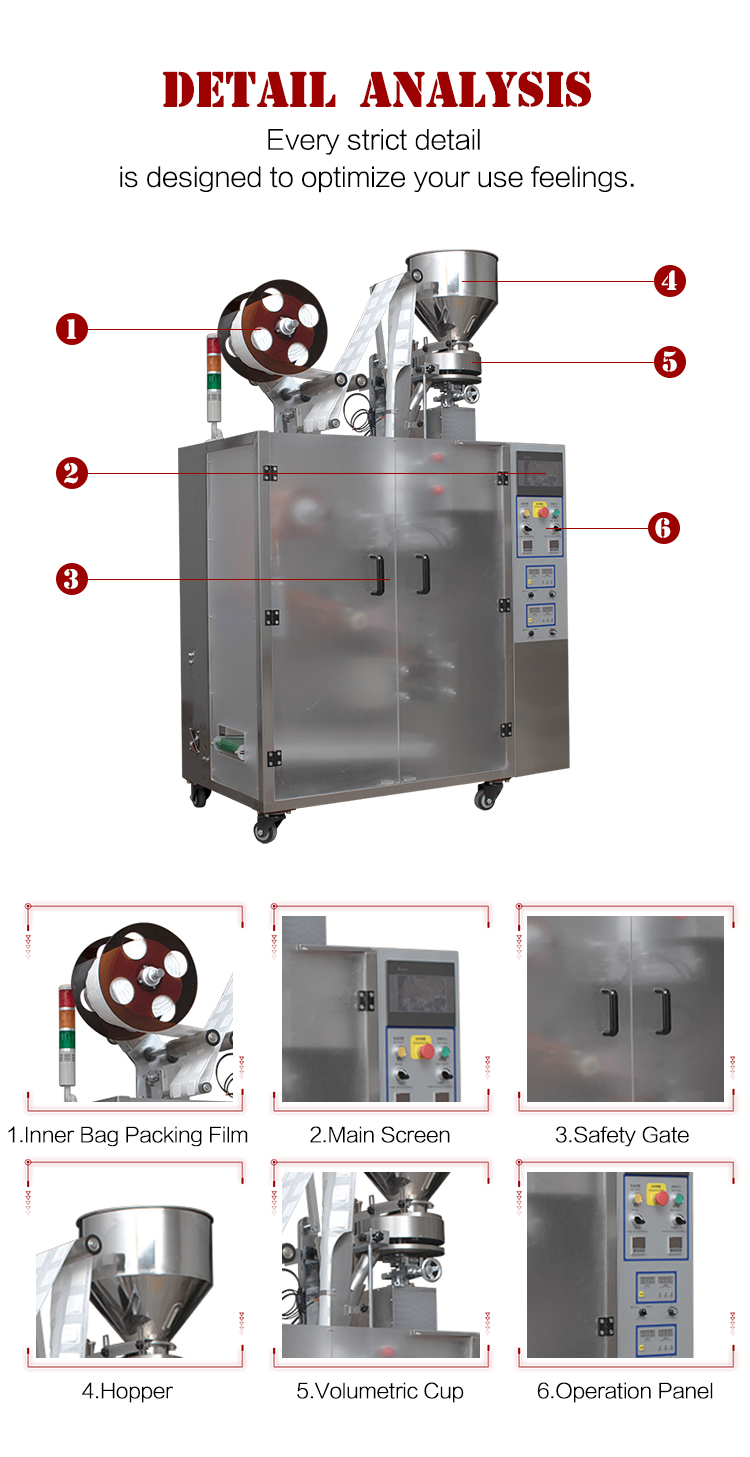

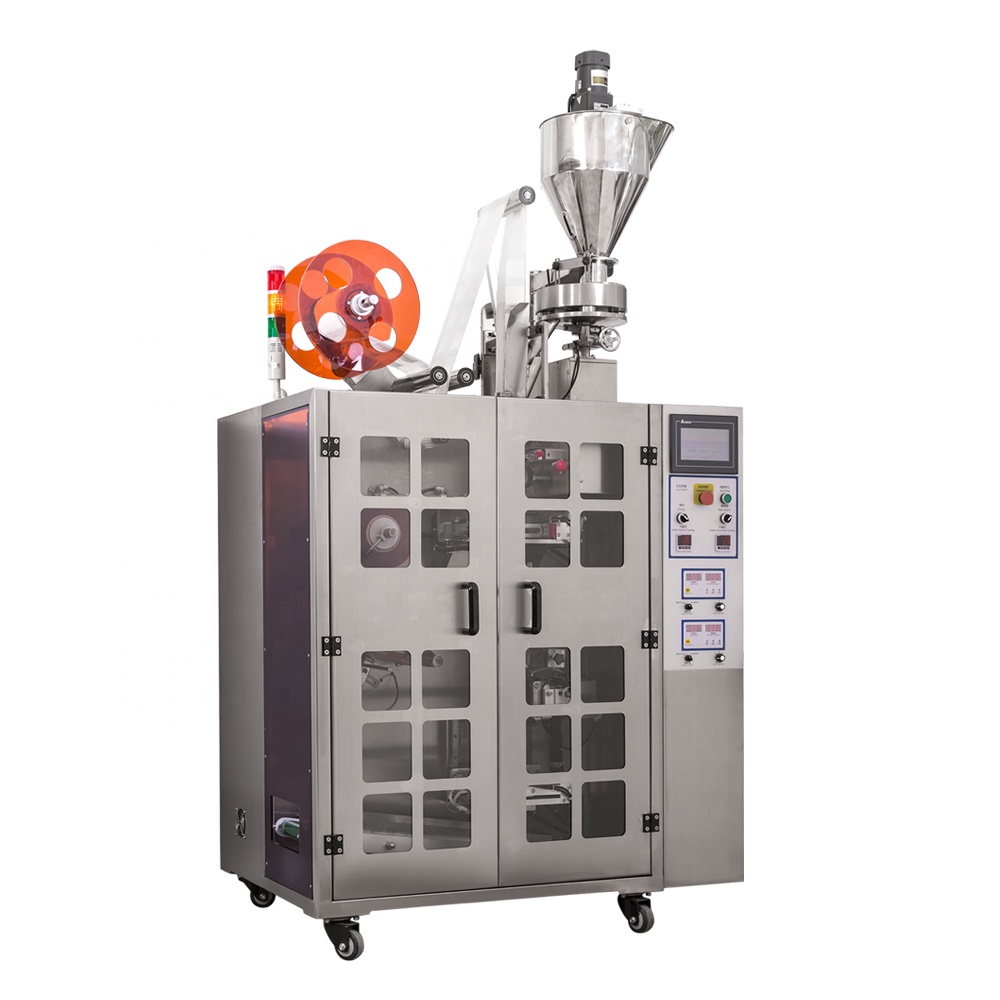

TS190H Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine

  • By product
  • Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine
Get in touch

Video


Features and Specifications:

Features:
1 .Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2 .Adopts PID temperature controller for more accurate temperature adjustment.
3 .Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.
4 .It can make inner and outer bag in same time automatically, which would highly improve the working efficiency.
5 .The process of bag making measuring, filling, sealing, cutting, logo positioning, counting can be finished automatically.

6 .All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.



Specifications:

Model:

TS190H

Product name:

Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine

Bag type:

3 side sealing

Outer Bag size:

L:85~120mm,W:75~100mm (Film width 200mm, Bag size: 120*100mm)

Inner Bag size:

L:50~75mm, W:50~90mm (Filter paper width 180mm, Bag size: 90*75mm)

Packing speed:

40~60 bags/min

Filling range:

5~15g; accuracy:±0.1g/bag

Measuring:

Volumetric cup

Inner Packing material

Drip coffee filter paper bag; Nylon filter mesh; Nonwoven coffee bag

Outer packing material

Kraft paper/aluminum coating; PE film,PE/aluminum coating;

Sealing method:

Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing.

Power:

Single phase, 220V, 50HZ, 1.5KW

Weight:

600KG

Dimension(L*W*H)

1200*900*1900mm





 This ultrasonic drip coffee inner and outer bag packing machine is hot sale all over the world including the USA,THE UK,Italy,Canada,Australia,Russia,Turky,and so on.We have a very strong technology team and senior experiences of production management.Our product have obtained a great number of national practical patents and invention patents.
